HDMI cabling for outdoor TVs has two problems that indoor installs never encounter: weatherproofing and distance. Standard HDMI cables are not rated for outdoor exposure, and longer outdoor runs hit signal limits faster than indoor runs because of conduit bends and temperature effects on the cable. Here is how to solve both.
Why Standard HDMI Cables Fail Outdoors
Standard HDMI cables use:
- PVC jacket material that becomes brittle in UV exposure and cold temperatures
- Non-weatherproof connectors that corrode when exposed to moisture
- Foil shielding that degrades when the jacket cracks and allows moisture contact
A standard HDMI cable run along an exterior wall may last one season before intermittent signal failures begin -- and may fail completely once connector corrosion advances.
Outdoor-Rated HDMI Options
1. Weatherproof HDMI Cables
Outdoor-rated HDMI cables use UV-stabilized jacket material, weatherproof connector boots, and sometimes armored construction for physical protection. These are appropriate for exposed surface runs up to 25-30 feet. Beyond that, standard passive HDMI attenuation limits apply regardless of weatherproofing.
2. Active HDMI Cables
Active HDMI cables include a signal booster chip in one of the connectors, extending reliable range from the standard 15-25 ft to 50-100 ft. For outdoor runs where you need to cross a wall, go through conduit, and reach a far-mounted TV, active cables are the practical solution for medium distances.
Note: active HDMI cables are directional -- the end with the chip must connect to the source, not the display.

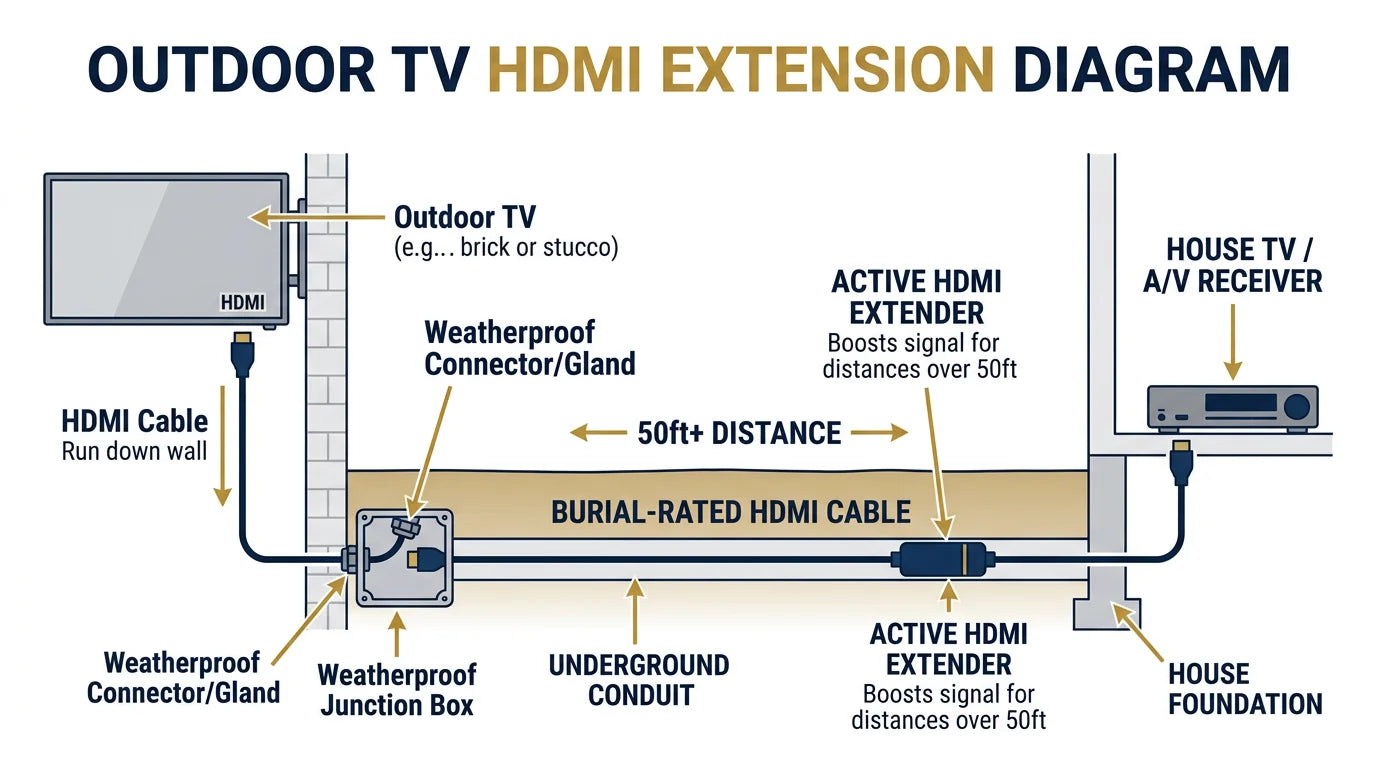

3. HDMI over Ethernet Extenders
For runs beyond 50 ft -- or for running through buried conduit where passive attenuation and conduit bends degrade signal -- HDMI over Cat6 extenders are the professional solution. A transmitter at the source converts HDMI to a signal that runs over standard Cat6 Ethernet cable; a receiver at the TV converts it back to HDMI.
Range: up to 330 ft (100m) over Cat6 cable. Cat6 outdoor-rated solid core cable is required for exterior/buried runs.
This is the recommended approach for any outdoor run over 50 ft or through buried conduit.
4. Fiber HDMI Cables
Fiber HDMI cables transmit signal over optical fiber -- immune to electromagnetic interference and capable of extremely long runs (up to 300 ft) without extender hardware. They are more expensive than Cat6 extenders but simpler to install (single cable, no power needed at the receiver end). Appropriate for high-end permanent installs.
Practical Run Planning
| Run Length | Route Type | Recommended Solution |
|---|---|---|
| Under 15 ft | Exposed or surface raceway | Standard outdoor-rated HDMI cable |
| 15-50 ft | Surface raceway or conduit | Active HDMI cable (outdoor-rated) |
| 50-100 ft | Conduit (surface or buried) | HDMI over Cat6 extender + outdoor Cat6 |
| 100+ ft | Buried conduit | HDMI over Cat6 extender or fiber HDMI |
Weatherproofing the Connections
Even with weatherproof cables, the connection points are the vulnerability. At the TV end:
- Use the rubber port covers on the TV when ports are not in use
- Apply a small amount of dielectric grease to HDMI connector contacts before mating -- prevents corrosion at the connection point
- Where the cable enters the wall or conduit, seal with exterior-rated putty or cable gland
The WiFi Alternative
If your outdoor TV has a strong built-in smart platform (Google TV or Roku TV), you may not need HDMI at all for most use cases. Streaming directly from the TV's built-in apps eliminates the HDMI cable run entirely. The trade-off is that locally stored content, gaming consoles, and Blu-ray players still require a physical connection.
Who This Guide Is Not For
- Indoor TV installations: indoor HDMI runs do not face weatherproofing or extreme temperature constraints
- Commercial AV systems: professional AV distribution uses different protocols (HDBaseT, AVoIP) beyond the scope of residential HDMI
For the full outdoor cable management picture: How to Hide Outdoor TV Cables: 4 Clean Solutions
